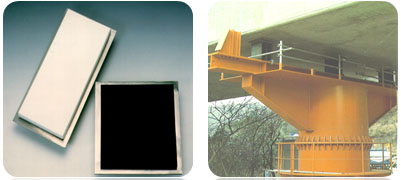

Sliding Pad
| Type | Features | |
|---|---|---|
| Contact Type |  |
Metal plate with PTFE bonded on its one side |
| Insert Type |  |
More force is required to slide than lift a load |
| Grip Type |  |
Good adaptability against high load and heat deformation and easy to exchange PTFE sheet |
| Shoe |  |
· Use for the dram located
between mon-structures or
support plate with U-bolt · Easy to install and demount |
- Application
-
- · Bridge - Piers of high level load and iron bridge,bridges
- · Building - Expansion joints of structures, high building
- · Constructs - Supports of chemical plant, structures on the sea, pipeline
- · Industry - Slide bearing pads of Large machine or ship manufacturing
- Features
-
- - Enhancement of the durability against the crack torsion of facilities.
- · Requires no lubrication or maintenance for the life of the sliding
- · Excellent weather resistance from outdoor exposure the sliding
- · Operable under low temperature caused to corrosion of metal because of chemical resistance
- · Anti-stick of PTFE incorporated on sliding pad is very low, therefore there is no need of considering the limitation of wear in design.
- Material
-
- PTFE, PTFE + Filler
